کوپلند کمپرسور‌ از سه تن تا پنج تن

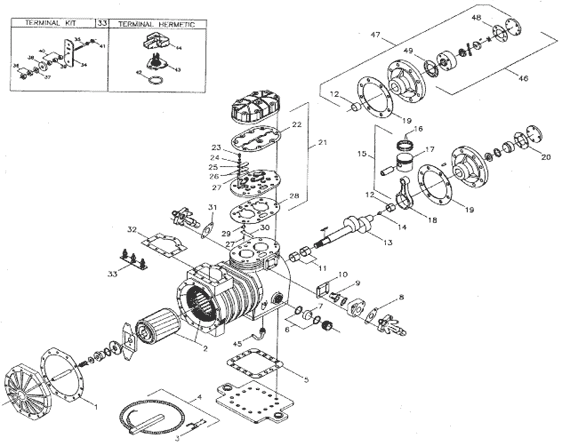

جهت سفارش قطعه مورد نظر شماره قطعه را ار روی نقشه کمپرسور بررسی و برای شرکت ما ارسال نمائید

1-   END COVER GASKET
3-   EXTERNAL HEATER MOUNTING CLIP FOR STRAP ON
4-   CRANKCASE HEATER, 240 VOLTS, 65 WATTS, STRAP ON, WITH CLIPS
5-   BOTTOM PLATE GASKET
6-   SIGHT GLASS GASKET - NEOPRENE, (2 per Compressor)
6-   SIGHT GLASS GASKET - NEOPRENE, (2 per Compressor)
7-   SIGHT GLASS, DIAMETER 1-1/32", THICKNESS 13/32"
7-   SIGHT GLASS, DIAMETER 1-5/8", THICKNESS 3/8"
8-   SERVICE VALVE GASKET
9-   SUCTION STRAINER SCREEN, FLANGE O.D. 1", LENGTH 1-1/4"
9-   SUCTION STRAINER SCREEN, FLANGE 2-1/2 x 1-1/2", LENGTH 2"
10- ADAPTER GASKET
10- ADAPTER GASKET
11- MAIN BUSHING INSERT, 2 USED PER COMPRESSOR ROUGH BORE
11- MAIN BUSHING INSERT, 2 USED PER COMPRESSOR
12- END BUSHING INSERT, 1 USED PER COMPRESSOR ROUGH BORE
12- END BUSHING INSERT, 1 USED PER COMPRESSOR
12- PUMP END BUSHING, FINISHED BORE
12- MAIN BUSHING INSERT, OIL PUMP END ROUGH BORE
13- CRANKSHAFT 3.0 Hp (1-7/16" STROKE)
13- CRANKSHAFT 3.0 Hp (1-11/16" STROKE)
13- CRANKSHAFT 3.0 Hp (1-7/16" STROKE) USED WITH OIL PUMP
14- CRANKSHAFT PLUG
15- PISTON AND ROD ASSEMBLY, ref individual items
16- COMPRESSION RING, 2-1/4" BORE
16- COMPRESSION RING, 2-1/4" BORE, 0.020" OVERSIZE
16- COMPRESSION RING, 2-3/8" BORE
16- COMPRESSION RING, 2-3/8" BORE, 0.020" OVERSIZE
16- COMPRESSION RING, 2-3/8" BORE, 0.030" OVERSIZE
16- COMPRESSION RING, 2-7/16" BORE
16- COMPRESSION RING, 2-7/16" BORE, 0.020" OVERSIZE
16- COMPRESSION RING, 2-7/16" BORE, 0.030" OVERSIZE
17- PISTON, 2-7/16" BORE
17- PISTON, 2-7/16" BORE
17- PISTON, 2-1/4" BORE
17- PISTON, 2-3/8" BORE
18- CONNECTING ROD (1-7/16" STROKE)
18- CONNECTING ROD, .010" UNDERSIZE
18- CONNECTING ROD, .020" UNDERSIZE
18- CONNECTING ROD (1-11/16" STROKE)
18- CONNECTING ROD, .010" UNDERSIZE
18- CONNECTING ROD, .020" UNDERSIZE
19- BEARING HOUSING GASKET
20- COVER PLATE GASKET
21- VALVE PLATE ASSEMBLY (3, 4, 5.0 Hp)
22- HEAD GASKET
23- BOLT, VALVE REED ALL VALVE PLATES
24 BOLT LOCK DEVICE FOR VALVE PLATE BOLTS
25- RETAINER, VALVE REED ALL VALVE PLATES
26- DISCHARGE VALVE REED
27- DISCHARGE AND SUCTION VALVE REED PINS, EXCEPT 2-15/16" BORE
28- VALVE PLATE GASKET, 2-3/8" BORE
28- VALVE PLATE GASKET, 2-1/4" BORE
28- VALVE PLATE GASKET, 2-7/16" BORE
29- SUCTION VALVE CRIMP PAD
30- SUCTION VALVE REED
31- SERVICE VALVE GASKET
31- SERVICE VALVE GASKET
32- TERMINAL PLATE GASKET
32- TERMINAL PLATE GASKET
32- TERMINAL PLATE GASKET
33- TERMINAL KIT
34- TERMINAL BOARD INSULATOR
35- TERMINAL BOLT, 3/16" CONTROL CIRCUIT
36 TERMINAL NUT, BRASS, CONTROL CIRCUIT
37- TERMINAL WASHER, STEEL
38- TERMINAL WASHER, FIBER
39- TERMINAL SEAL
40- TERMINAL INSULATOR, FIBER
41- TERMINAL NUT WITH LOCK WASHER
42- TERMINAL O-RING
43- TERMINAL HERMETIC
43- TERMINAL HERMETIC
44- CONNECTOR BLOCK
45- SNORKEL TUBE CHECK VALVE ASSEMBLY
46- OIL PUMP ASSEMBLY
47- OIL PUMP ASSEMBLY WITH BEARING HOUSING
48- OIL PUMP COVER GASKET
49- PUMP TO BEARING HOUSING GASKET
