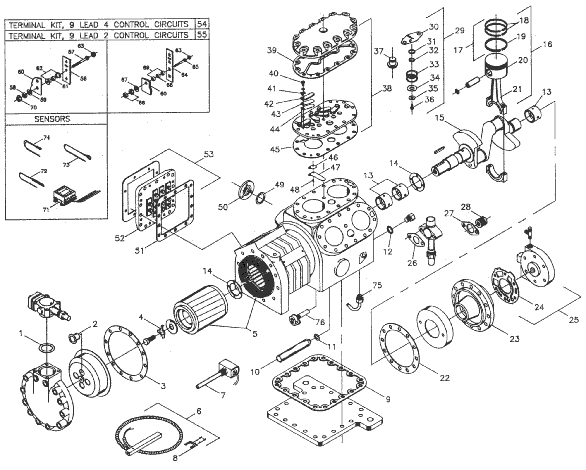

6R Series

1- SERVICE VALVE GASKET
1- SERVICE VALVE GASKET 3-3/4" x 2-1/4", I.D. 1-1/2" (2 BOLTS)
1- SERVICE VALVE GASKET (TYPE 4 SERVICE VALVE)
2- SUCTION STRAINER SCREEN, FLANGE O.D. 1-7/8", LENGTH 1-3/8"
3- END COVER GASKET
4- ROTOR BOLT LOCK
6- CRANKCASE HEATER, 230 VOLTS, 100 WATTS, STRAP ON, WITH CLIPS
7- CRANKCASE HEATER, 240 VOLTS, 100 WATTS, IMMERSION
7- CRANKCASE HEATER, 480 VOLTS, 100 WATTS, IMMERSION
7- CRANKCASE HEATER, 115 VOLTS, 100 WATTS, IMMERSION
8- EXTERNAL HEATER MOUNTING CLIP FOR STRAP ON
9- BOTTOM PLATE GASKET
10- OIL SCREEN, FLANGE O.D. 1", LENGTH 7-1/2", SPRING LOADED
10- OIL SCREEN, FLANGE O.D. 7/8", LENGTH 8" (HEX)
11- COPPER OIL SCREEN GASKET, 1-1/8" x 1-3/8"
12- COPPER OIL PLUG GASKET
13- MAIN BUSHING INSERT, 3 USED PER COMPRESSOR
13- MAIN BUSHING INSERT (FINISHED BORE, 0.010" UNDERSIZE)
13- MAIN BUSHING INSERT (FINISHED BORE, 0.020" UNDERSIZE)
13- MAIN BUSHING INSERT ROUGH BORE
14- THRUST BUSHING BRONZE
14- THRUST BUSHING, WITH SPLIT, CRANKCASE SIDE (NYLATRON)
14- THRUST BEARING, MOTOR END (NYLATRON)
16- PISTON AND ROD ASSEMBLIES ref INDIVIDUAL COMPONENTS,
18- COMPRESSION RING, 2-15/16" BORE (THIN)
18- COMPRESSION RING, 2-15/16" BORE, 0.020" OVERSIZE (THIN)
18- COMPRESSION RING, 2-15/16" BORE, 0.030" OVERSIZE (THIN)
18- COMPRESSION RING, 2-1/2" BORE
18- COMPRESSION RING, 2-1/2" BORE, 0.020" OVERSIZE
18- COMPRESSION RING, 2-1/2" BORE, 0.030" OVERSIZE
18- COMPRESSION RING, 2-11/16" BORE
18- COMPRESSION RING, 2-11/16" BORE, 0.020" OVERSIZE
18- COMPRESSION RING, 2-11/16" BORE, 0.030" OVERSIZE
18- COMPRESSION RING, 2-15/16" BORE (THICK)
18- COMPRESSION RING, 2-15/16" BORE, 0.020" OVERSIZE (THICK)
18- COMPRESSION RING, 2-15/16" BORE, 0.030" OVERSIZE (THICK)
19- OIL RING, 2-1/2" BORE
19- OIL RING, 2-1/2" BORE, 0.020" OVERSIZE
19- OIL RING, 2-1/2" BORE, 0.030" OVERSIZE
19- OIL RING, 2-11/16" BORE
19- OIL RING, 2-11/16" BORE, 0.020" OVERSIZE
19- OIL RING, 2-11/16" BORE, 0.030" OVERSIZE
20- PISTON, 2-1/2" BORE
20- PISTON, 2-1/2" BORE, 0.020" OVERSIZE
20- PISTON, 2-1/2" BORE, 0.030" OVERSIZE
20- PISTON, 2-1/2" BORE (ALUMINUM)
20- PISTON, 2-1/2" BORE, 0.020" OVERSIZE (ALUMINUM)
20- PISTON, 2-1/2" BORE, 0.030" OVERSIZE (ALUMINUM)
20- PISTON, 2-11/16" BORE
20- PISTON, 2-11/16" BORE, 0.020" OVERSIZE
20- PISTON, 2-11/16" BORE, 0.030" OVERSIZE
20- PISTON, 2-11/16" BORE (ALUMINUM)
20- PISTON, 2-11/16" BORE, 0.020" OVERSIZE (ALUMINUM)
20- PISTON, 2-11/16" BORE, 0.030" OVERSIZE (ALUMINUM)
20- PISTON, 2-15/16" BORE (ALUMINUM, THIN RING GROOVE)
20- PISTON, 2-15/16" BORE, 0.020" OVERSIZE (ALUMINUM, THIN RING GROOVE)
20- PISTON, 2-15/16" BORE, 0.030" OVERSIZE (ALUMINUM, THIN RING GROOVE)
21- CONNECTING ROD
21- CONNECTING ROD, .010" UNDERSIZE
21- CONNECTING ROD, .020" UNDERSIZE
22- BEARING HOUSING GASKET
23- BEARING HOUSING (ALUMINUM)
23- BEARING HOUSING, 0.010" UNDERSIZE (ALUMINUM)
23- BEARING HOUSING, 0.020" UNDERSIZE (ALUMINUM)
24- OIL PUMP GASKET
24- OIL PUMP GASKET
24- OIL PUMP GASKET
25- OIL PUMP ASSEMBLY WITH ADAPTER RINGS
26- SERVICE VALVE GASKET
26- SERVICE VALVE GASKET
27- RELIEF VALVE COVER GASKET
28- SAFETY PRESSURE RELIEF VALVE
29- UNLOADER REPAIR KIT
30- METAL UNLOADER GASKET
31- TEFLON UNLOADER GASKET SEAT
32- UNLOADER O-RING
33- UNLOADER SPRING
34- TEFLON UNLOADER GASKET SEAT
35- UNLOADER WASHER
36- UNLOADER SCREW
37- UNLOADER PISTON
38- VALVE PLATE ASSEMBLY (7.5, 10.0 Hp)
38- VALVE PLATE ASSEMBLY (15, 25, 35 Hp)
38- VALVE PLATE ASSEMBLY (30 Hp)
38- VALVE PLATE ASSEMBLY (40 Hp)
39- HEAD GASKET
39- HEAD GASKET UNLOADING
39- HEAD GASKET UNLOADING
39- HEAD GASKET UNLOADING
40- BOLT, VALVE REED ALL VALVE PLATES
41- BOLT LOCK DEVICE FOR VALVE PLATE BOLTS
42- RETAINER, VALVE REED ALL VALVE PLATES
43- DISCHARGE VALVE REED
43- DISCHARGE VALVE REED
44- DISCHARGE AND SUCTION VALVE REED PINS,EXCEPT 2-15/16" BORE
45- VALVE PLATE GASKET, 2-1/2" BORE
45- VALVE PLATE GASKET, 2-11/16" BORE
45- VALVE PLATE GASKET, 2-15/16" BORE (refrigeration)
45 VALVE PLATE GASKET, 2-15/16" BORE (air conditioning)
45- VALVE PLATE GASKET, 2-15/16" BORE 0.65" thick (air conditioning)
46- SUCTION VALVE CRIMP PAD
46- PLASTIC PAD
47- SUCTION VALVE REED
47- SUCTION VALVE REED
47- SUCTION VALVE REED
48- SUCTION VALVE PIN
49- SIGHT GLASS O-RING
50- SIGHT GLASS, FUSITE 3 BOLT FLUSH MOUNT
51- TERMINAL PLATE GASKET
52- TERMINAL PLATE, 4 CONTROL, 6 LEAD
52- TERMINAL PLATE, 4 CONTROL, 9 LEAD
53- TERMINAL PLATE KIT 9 LEAD, 4 CONTROL WITH TERMINAL PLATE
54- TERMINAL PLATE KIT 9 LEAD, 4 CONTROL WITHOUT TERMINAL PLATE
55- TERMINAL PLATE KIT 9 LEAD, 2 CONTROL WITHOUT TERMINAL PLATE
56- TERMINAL BOARD INSULATOR
57- TERMINAL BOLT 1/4"
57- TERMINAL BOLT
58- TERMINAL NUT BRASS
59- TERMINAL WASHER, STEEL
60- TERMINAL BOARD INSULATOR - 2 CONTROL
60- TERMINAL BOARD INSULATOR - 4 CONTROL
61- TERMINAL SEAL
62- TERMINAL INSULATOR
63- TERMINAL NUT WITH LOCK WASHER
64- TERMINAL BOARD INSULATOR, 2 HOLES
64- TERMINAL BOARD INSULATOR, 4 HOLES
65- TERMINAL BOLT, 3/16" CONTROL CIRCUIT
66- TERMINAL NUT, BRASS, CONTROL CIRCUIT
67- TERMINAL WASHER, STEEL
68- TERMINAL SEAL
69- TERMINAL INSULATOR, FIBER
70- TERMINAL NUT WITH LOCK WASHER
71- ROBERTSHAW EXTERNAL MODULE, 120 VOLT
71- ROBERTSHAW EXTERNAL MODULE, 208/240 VOLT
71- TI EXTERNAL MODULE, 120 VOLT
71- TI EXTERNAL MODULE, 208/240 VOLT
71- DUAL VOLTAGE MODULE WITH ADAPTER, 120/240V
72- MOTOR PROTECTION SENSOR ROBERTSHAW
73- MOTOR PROTECTION SENSOR KLIXON TI
74- MOTOR PROTECTION SENSOR ELECTRONIC
75- SNORKEL TUBE CHECK VALVE ASSEMBLY
76- OIL CHECK VALVE, NYLON
