کوپلند از پنج تن تا پانزده تن

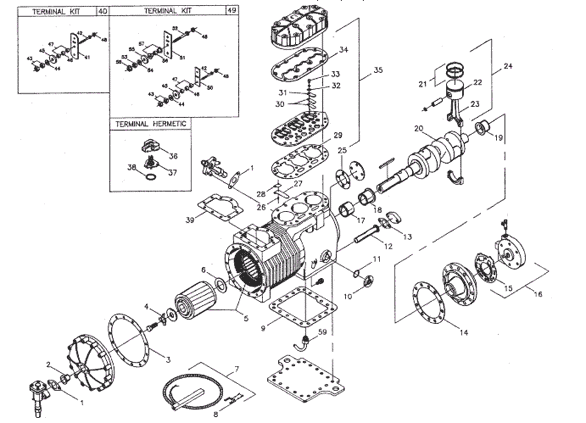

جهت سفارش قطعه مورد نظر شماره قطعه را ار روی نقشه کمپرسور بررسی و برای شرکت ما ارسال نمائید

1-   SERVICE VALVE GASKET (TYPE 4 SERVICE VALVE)
1-   SERVICE VALVE GASKET
2-   SUCTION STRAINER SCREEN, WITH SPRING WASHER FLANGE O.D. 2-3/16", LENGTH 2-1/8"
2-   SUCTION STRAINER SCREEN, FLANGE O.D. 1-1/4", LENGTH 1-1/2"
2-   SUCTION STRAINER SCREEN, FLANGE O.D. 2-5/16", LENGTH 1-1/2"
2-   SUCTION STRAINER SCREEN, FLANGE O.D. 1-5/16", LENGTH TAPERED 1-7/8"
3-   END COVER GASKET
4-   ROTOR BOLT LOCK
4-   ROTOR BOLT LOCK
6-   THRUST WASHER
7-   CRANKCASE HEATER, 230 VOLTS, 100 WATTS, STRAP ON, WITH CLIPS
8-   EXTERNAL HEATER MOUNTING CLIP FOR STRAP ON
9-   BOTTOM PLATE GASKET
10- SIGHT GLASS, FUSITE 3 BOLT FLUSH MOUNT
11- SIGHT GLASS O-RING
11- SIGHT GLASS O-RING
12- OIL SCREEN, FLANGE O.D. 1-1/16", LENGTH 5"
13- SERVICE VALVE GASKET
14- BEARING HOUSING GASKET
15- OIL PUMP GASKET
15- OIL PUMP GASKET
15- OIL PUMP GASKET
16- OIL PUMP ASSEMBLY WITH ADAPTER RINGS
17- MAIN BUSHING INSERT, MOTOR SIDE ROUGH BORE
17- MAIN BUSHING INSERT, MOTOR SIDE (FINISHED BORE)
17- MAIN BUSHING INSERT,MOTOR SIDE (FINISHED BORE, 0.010" UNDERSIZE)
17- MAIN BUSHING INSERT, MOTOR SIDE
18- MAIN BUSHING INSERT, CRANKCASE SIDE ROUGH BORE
18- MAIN BUSHING INSERT, CRANKCASE SIDE(FINISHED BORE)
18- MAIN BUSHING INSERT,CRANKCASE SIDE (FINISHED BORE, 0.010" UNDERSIZE)
18- MAIN BUSHING INSERT, CRANKCASE SIDE
19- MAIN BUSHING INSERT, OIL PUMP END ROUGH BORE
19- MAIN BUSHING INSERT, OIL PUMP END
19- MAIN BUSHING INSERT, OIL PUMP END (FINISHED BORE, 0.010" UNDERSIZE)
19- MAIN BUSHING INSERT, OIL PUMP END
20- CRANKSHAFT 7.5 - 15.0 Hp
21- COMPRESSION RING, 2-3/8" BORE
21- COMPRESSION RING, 2-3/8" BORE, 0.020" OVERSIZE
21- COMPRESSION RING, 2-3/8" BORE, 0.030" OVERSIZE
21- COMPRESSION RING, 2-7/16" BORE
21- COMPRESSION RING, 2-7/16" BORE, 0.020" OVERSIZE
21- COMPRESSION RING, 2-7/16" BORE, 0.030" OVERSIZE
21- COMPRESSION RING, 2-3/8" BORE
21- COMPRESSION RING, 2-3/8" BORE, 0.020" OVERSIZE
22- PISTON, 2-3/8" BORE
22- PISTON, 2-3/8" BORE, 0.020" OVERSIZE
22- PISTON, 2-3/8" BORE, 0.030" OVERSIZE
22- PISTON, 2-7/16" BORE
22- PISTON, 2-7/16" BORE, 0.020" OVERSIZE
22- PISTON, 2-7/16" BORE, 0.030" OVERSIZE
22- PISTON, 2-7/16" BORE (ALUMINUM)
22- PISTON, 2-7/16" BORE OVERSIZE (ALUMINUM)
22- PISTON, 2-7/16" BORE OVERSIZE (ALUMINUM)
23- CONNECTING ROD
23- CONNECTING ROD, .010" UNDERSIZE
23- CONNECTING ROD, .020" UNDERSIZE
23- CONNECTING ROD BLUE RIBBON
23- CONNECTING ROD, .010" UNDERSIZE BLUE RIBBON
23- CONNECTING ROD, .020" UNDERSIZE BLUE RIBBON
24- PISTON AND ROD ASSEMBLY, ref individual components
25- COVER PLATE GASKET
26- DISCHARGE AND SUCTION VALVE REED PINS,EXCEPT 2-15/16" BORE
27- SUCTION VALVE REED
27- SUCTION VALVE REED
27- SUCTION VALVE REED (DISC TYPE COMPRESSOR)
28- SUCTION VALVE CRIMP PAD
28- CRIMP PAD USED
29- VALVE PLATE GASKET, 2-7/16" BORE
29- VALVE PLATE GASKET, 2-3/16" BORE
29- VALVE PLATE GASKET, 2-3/8" BORE
30- DISCHARGE VALVE REED
31- RETAINER, VALVE REED ALL VALVE PLATES
32- BOLT LOCK DEVICE FOR VALVE PLATE BOLTS
33- BOLT, VALVE REED ALL VALVE PLATES
34- HEAD GASKET, 2 3/8", 2 3/16"
34- HEAD GASKET, 3D/9D
34- HEAD GASKET, 2 7/16"
34- HEAD GASKET, 3D/9D
34- HEAD GASKET, UNLOADING
35- VALVE PLATE ASSEMBLY (7.5, 10.0 Hp)
35- VALVE PLATE ASSEMBLY (5.0, 7.5 Hp)
35- VALVE PLATE ASSEMBLY
35- VALVE PLATE ASSEMBLY
36- CONNECTOR BLOCK
37- TERMINAL HERMETIC FUSITE
38- TERMINAL O-RING
39- TERMINAL PLATE GASKET
39- TERMINAL PLATE GASKET
40- TERMINAL KIT
41- TERMINAL BOARD INSULATOR
42- TERMINAL BOLT, 3/16" CONTROL CIRCUIT
43- TERMINAL NUT, BRASS, CONTROL CIRCUIT
44- TERMINAL WASHER, STEEL
45- TERMINAL WASHER, FIBER
46- TERMINAL SEAL
47- TERMINAL INSULATOR, FIBER
48- TERMINAL NUT WITH LOCK WASHER
49- TERMINAL KIT
50- TERMINAL BOARD INSULATOR, 2 HOLES
51- TERMINAL BOARD INSULATOR
52- TERMINAL BOLT 1/4"
53- TERMINAL NUT BRASS
54- TERMINAL WASHER, STEEL
55- TERMINAL WASHER, FIBER
56- TERMINAL SEAL
57- TERMINAL INSULATOR
58- TERMINAL NUT WITH LOCK WASHER
59- SNORKEL TUBE CHECK VALVE ASSEMBLY
